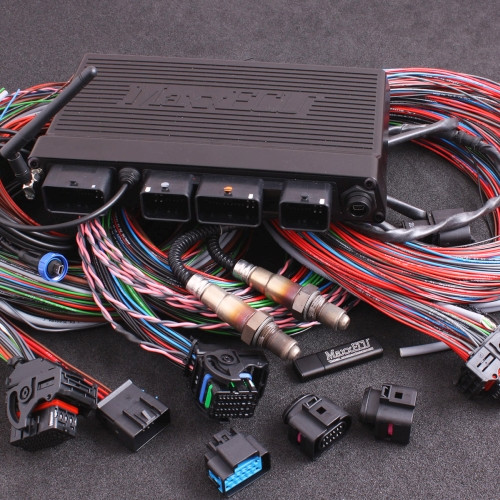

MaxxECU RACE ECU (Basic, Standard, Premium or H2O)
All MaxxECU's products use the same, easy to use, but very powerful MTune software. Dig deep or keep it simple.
All features are unlocked and available on every ECU.
Features:
- Anti-lag
- Launch and rolling launch control
- E-Throttle
- Knock control
- 1,000 Hz logging (up to 118 channels)
- Boost control (triple stage)
- Nitrous (up to six stages)
- Built-in wideband
- Shift-cut
- Logging up to 1000Hz
- Flexfuel
- Variable valve timing
- CAN bus (very flexible, OBD2, bitfields)
- Traction control
- Nitrous (multi stages)
- Boost control (multi stages)
- Shift-cut
- Any input on any axis
- True 4D axis
- User tables
- Bluetooth connection to MDash on your Android phone or tablet Download MDash on Google Play
Specification:
- 12 cylinder engines (4-stroke)
- Up to 8 cylinders fully sequentially
- Up to 12 cylinders in wasted spark
- Lambda (WBO) sensor. Supports Bosch LSU 4.2, 4.9
- 2 trigger inputs. VR or digital. Automatic trigger level detection
- 2 extra temperature sensors
- 2 knock sensor inputs
- 6 extra 0-5V inputs
- 4 extra digital inputs (VR / hall) or switches
- 8 EGT TYPE-K/N inputs (1200C/2200F) in separate harness
- 8 peak/hold injector outputs
- 8 ignition outputs
- 9 extra LOW DRIVING outputs for additional features
- 2 extra +12V DRIVING outputs
- 4 extra motor outputs
See the MaxxECU website for complete feature list.
Grab one of our 3D Printed Dummy MaxxECU Modules to visualise your installation.
