MaxxECU IO Expansion Module with H-Bridge

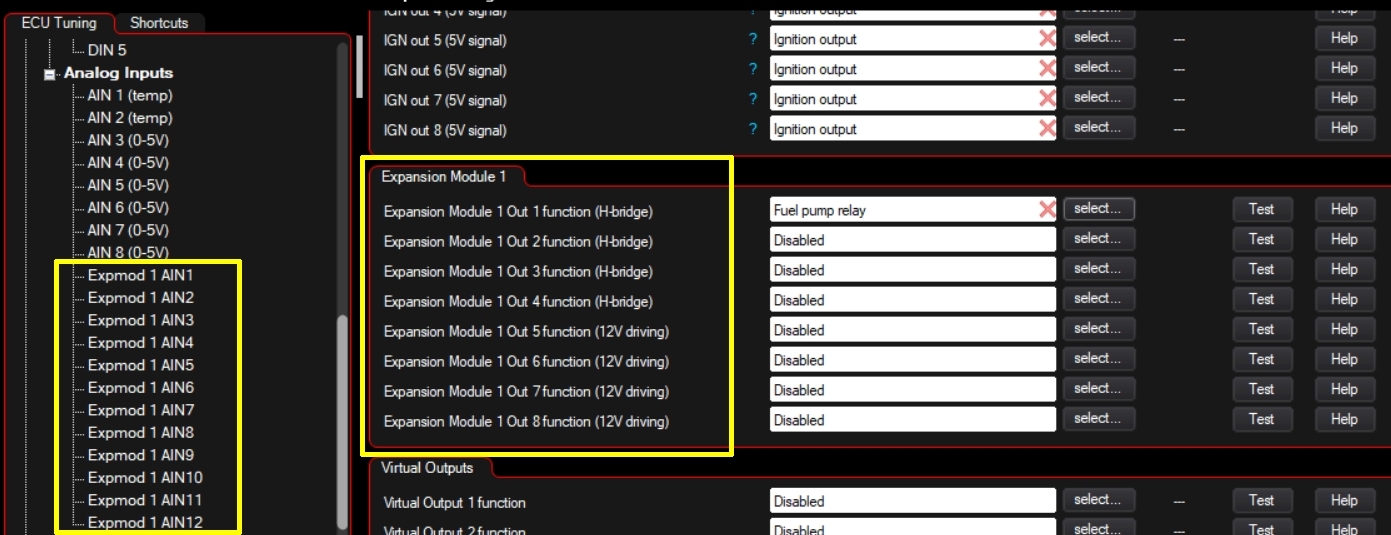

Integrates seamlessly with the same, easy to use, but very powerful MTune software.
Extends ANY MaxxECU over CAN Bus:
- up to 1000 Hz update rate
- 4 PULSE Inputs (Digital Inputs) up to 30 kHz
- 12 Analogue 0–5V Inputs
- 4 Outputs (12V Driving)
- 2x2 H-bridges
- IP68 water-proof rating
Includes Superseal 1.0 Connector and optional flying lead harness (5 meters)
Requires MTune version 1.161 or later
More details at maxxecu.com
MaxxECU Expansion Module on youTube
