MaxxECU Acceleration Sensor (+/- 3G)
Single channel analogue acceleration sensor.
Range -3 g to +3 g
Pin 1: Sensor GND
Pin 2: Signal output 0-5V
Pin 3: +5V Sensor Power
Calibration
1.0V - Negative 3 g
2.5V - Zero g
4.0V - 3 g in direction of arrow

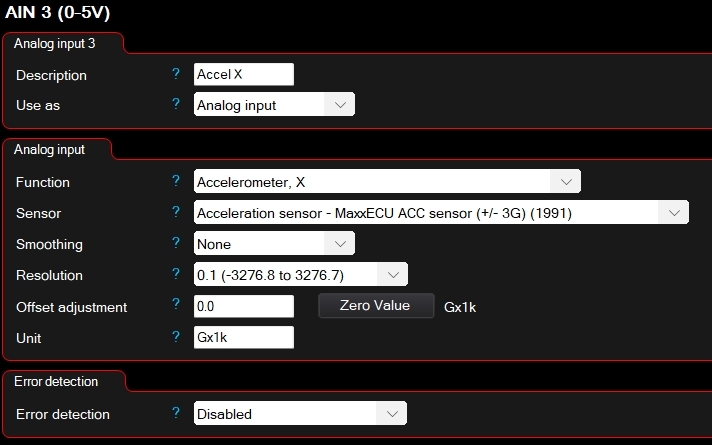

For MaxxECU simply connect to any spare analogue input, select "MaxxECU Acceleration Sensor" and assign the function ie, Acceleration in the X,Y or Z direction.
