The MaxxECU PDM20 is an advanced Power Distribution Module for MaxxECU units and is designed to replace fuses and relays in a modern way. Configured by the same, easy to use, but very powerful MTune software. Dig deep or keep it simple.
MaxxECU PDM20 Pinout & Diagram
Selected features:
- Maximum current 230A
- 20 outputs (8x25A, 8x15A, 4x8A)
- 7 digital / analogue 0-24V inputs
- All outputs can be PWM controlled
- Dedicated +5V power supply and sensor ground
- CAN bus for communication and setup management with MaxxECU MTune PC software
- Overcurrent protected adjustable levels with automatic restart with soft start option
- Warning levels for over current (or under current)
- Works with all MaxxECU devices
- Support for CAN keypads
- Error code handling
- Built-in energy saving mode that draws only 0.004A
MaxxECU PDM20 general features:
- Operating temperature range -40 to +125 °C
- Reverse polarity protection
- 6-22V operating voltage
- 32-bit ARM Cortex-M3 CPU
- 132x140x42mm (excluding protruding connectors)
- 1x 34-pin and 1x 26-pin Superseal connectors
- M6 screw for battery connection

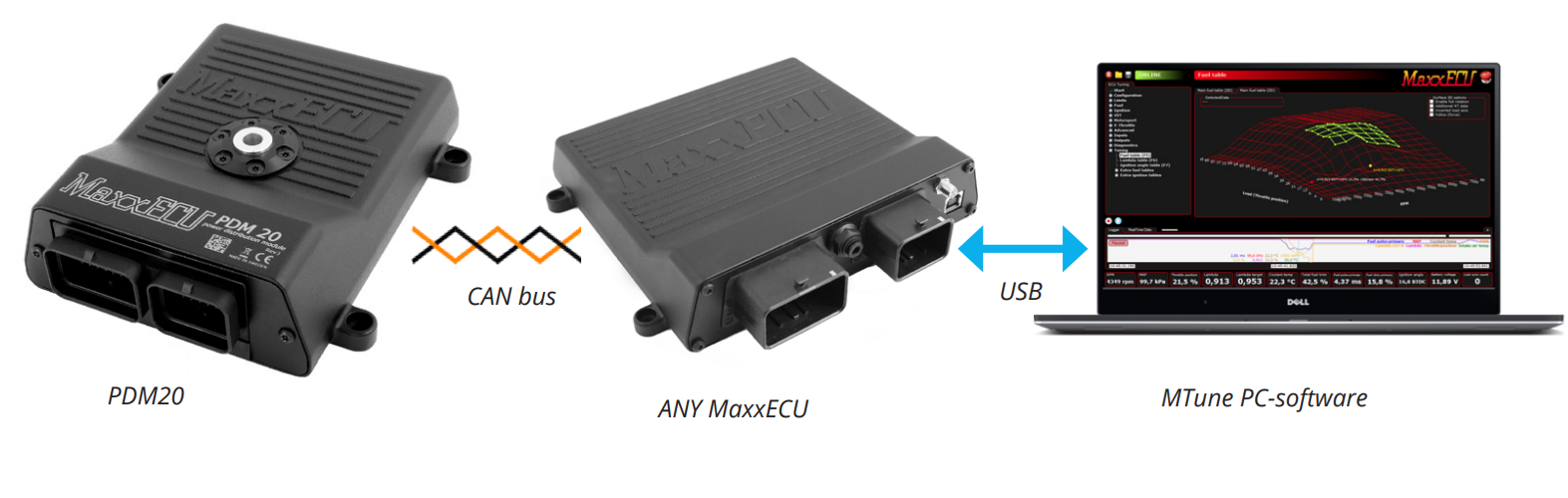

- Native support in MTune via any MaxxECU module over CAN-bus
MaxxECU PDM20 inputs:
- 7 Digital / Analogue (0-24V) inputs
- Software selectable 12V pullups
- CAN keypad (4,6,8,12 keys)
- MDash Download MDash on Google Play
MaxxECU PDM20 outputs:
- 230A maximum current throughput
- All outputs are PWM capable
- Current and voltage measuring
- 6 outputs with H-bridge drivers
- Overtemperature protection
- Output overcurrent protection via emulated fuse characteristics and hardware backup protection
- Monitored +5V sensor supply output
- Outputs can be paired to increase current capacity
See the MaxxECU website for complete feature list.
