Hall Effect Sensor - Wheel Crank Cam
One of the smallest and most cost effective universal Hall sensors available in the Autosport industry.
R6 Cam Position sensor (06-08 Yamaha YZF-R6R YZF R6)
Works with most ECU's
Diameter: 19mm
Length: 20mm (from sensing tip to mounting face)
Height: 32mm
Mounting: M6
Wiring:
Blue: Power (5V sensor supply)
Yellow: Signal (pullup required, most ECU's have this built in)
Black: Ground/0V (connect to dedicated signal/sensor ground)
Orientation

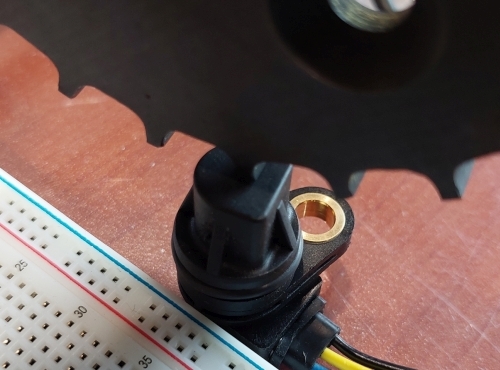

It's important for best performance that the interrupting teeth on the chopper wheel (or tone wheel) pass over the flat section of the "D" as pictured. The direction of rotation doesn't matter, but the orientation does.
